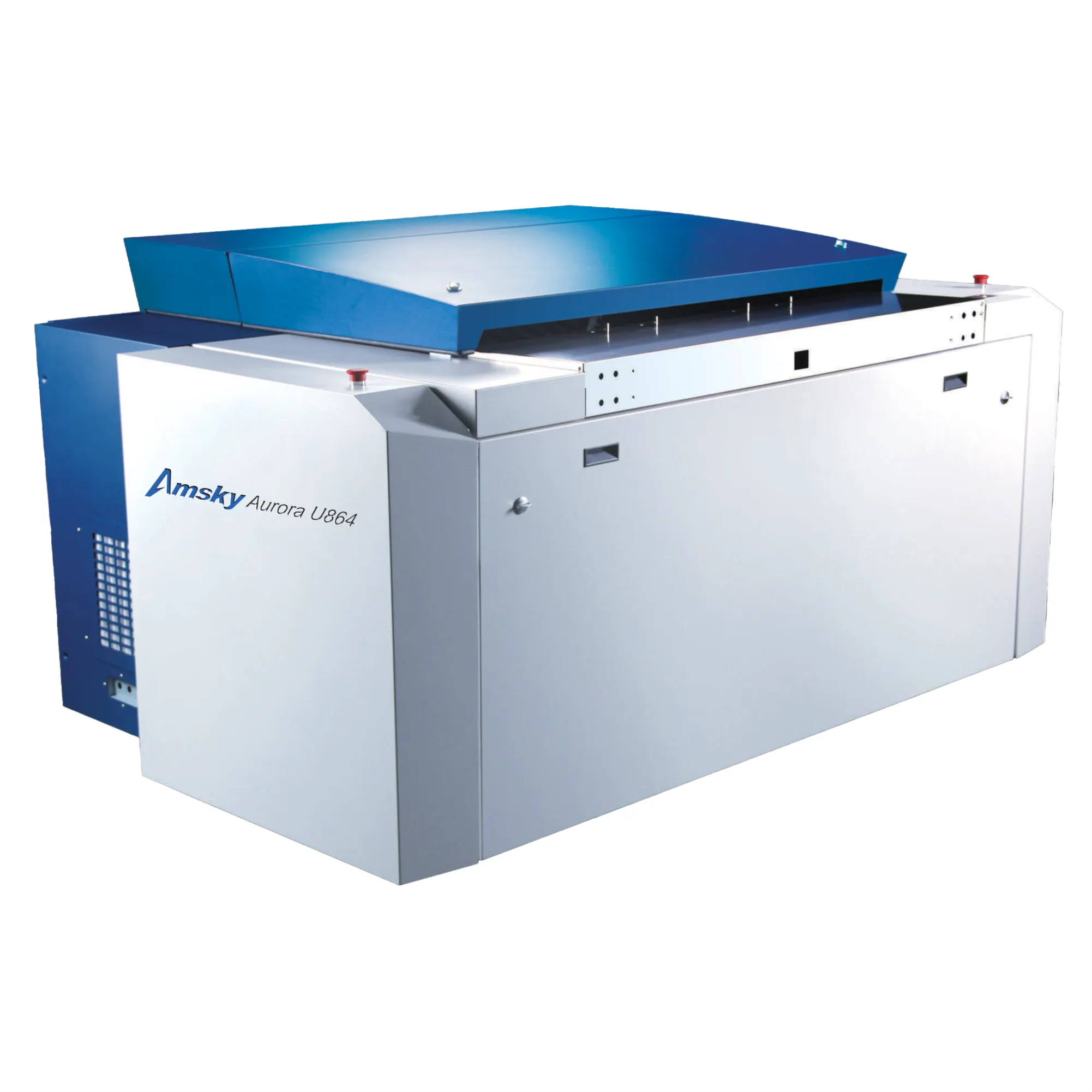

CTP specialized in large commercial quick printing.
Maximum size of plate: 1,130mm x 920mm.
Less manpower, high stability and perfect output quality.
UV plate and thermal plate are available for you to lower production cost.
Only one operator is needed to finish the whole output process.
Description
CTP specialized in large commercial quick printing. Maximum size of plate: 1,130mm x 920mm. Features: Less manpower, high stability and perfect output quality. UV plate and thermal plate are available for you to lower production cost. Furthermore, to improve the production efficiency, 32 channels, 48 channels and 64 channels laser are provided according to different printing speed. Combined with Autoloader, Processor and Stacker, AMSKY Aurora 800 series can achieve full-automatic printing. Only one operator is needed to finish the whole output process.
Specifications
Models
U 832
U 848
U 864
T 832
T 848
T 864
Exposing Method
External Drum
Imaging System
32-channel
48-channel
64-channel
32-channel
48-channel
64-channel
Discrete 400nm – 410nm Laser
Discrete 830nm Laser
Output Speed
16 plates/hour
22 plates/hour
28 plates/hour
16 plates/hour
22 plates/hour
28 plates/hour
1,030mm x 800mm / 2,400dpi
Plate Size
Max: 1,130mm x 920mm, Min: 510mm x 400mm
Exposing Size
Max: 1,130mm x 904mm
Plate Type
UV Plate, High-Sensitive PS Plate
Thermal Plate
Plate Thickness
0.15mm ~ 0.3mm
Resolutions
2,400dpi
Repeatability
± 5μm(Continuous exposure over four times on the same plate with a temperature of 23°C and 60% RH)
Interface
USB 2.0
Plate Loading
Alternative Autoload System
Net Weight
1,200 KG’s
Device Size
2,010 x 1,410 x 1,2000mm (W x D x H)
Power
Single Phase: 200V-240V | Max power(Peak value): 4KW
