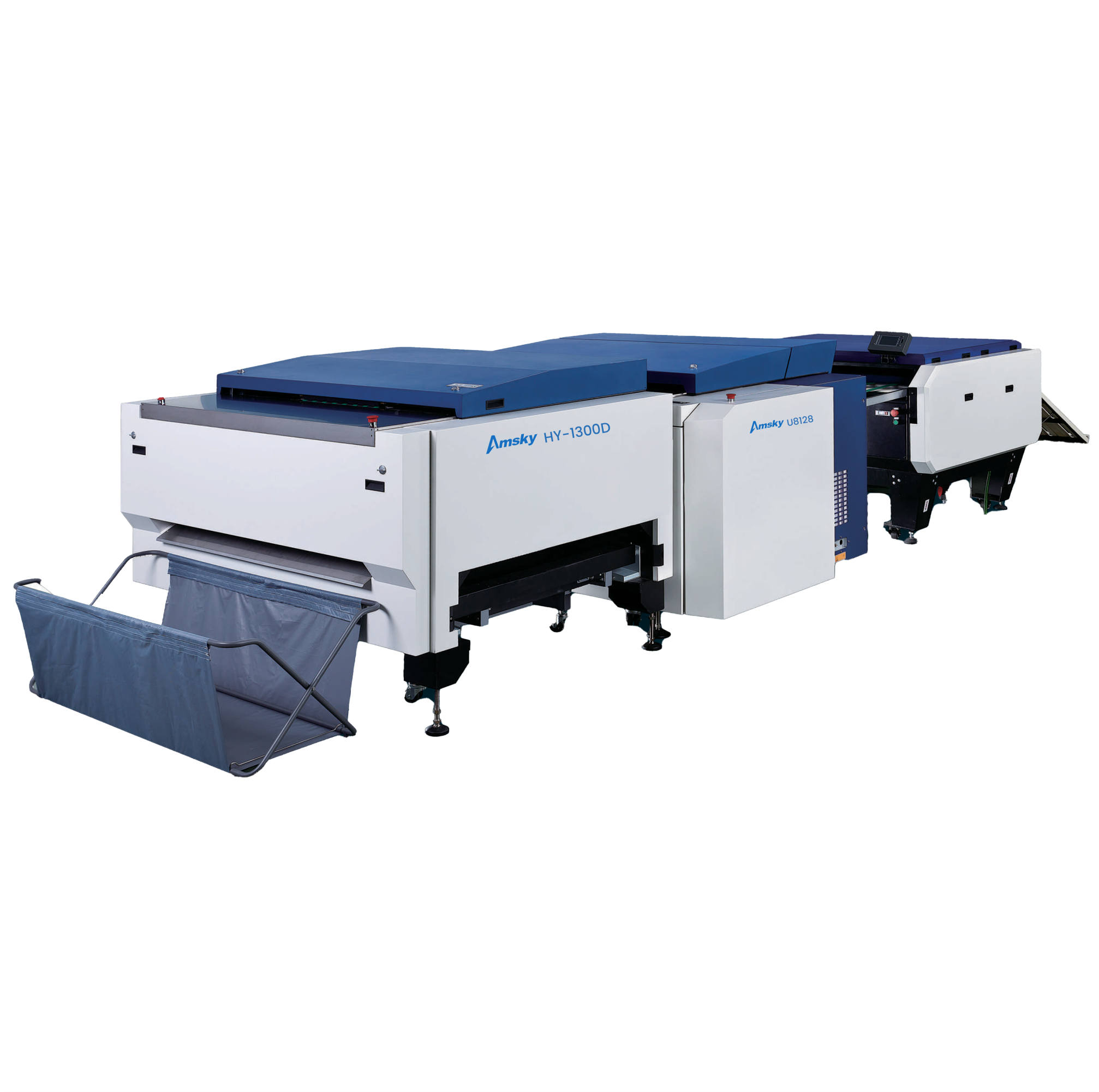

CTP specialized in high-speed commercial and newspaper printing.
Maximum size of plate: 1,130mm x 920mm.
Less manpower, high stability and perfect output quality.
It can output 70 plates/hour under the resolution of 1200dpi.
Only one operator is needed to finish the whole output process.
Description
CTP specialized in high-speed commercial and newspaper printing. Maximum size of plate: 1,130mm x 920mm. Features: Less manpower, high stability and perfect output quality. Traditional Plate is also applicable. it can output 70 plates/hour under the resolution of 1200dpi. Combined with autoloader, processor and stacker, AMSKY Aurora U8128 series can achieve full-automatic printing. Only one operator is needed to finish the whole output process.
Specifications
Models
U 8128
U 8128N
Exposing Method
External Drum
Imaging System
128-channel
Discrete 400nm – 410nm Laser
Output Speed
45 plates/hour
70 plates/hour
1,030mm x 800mm / 2,400dpi
745mm x 605mm / 1,200dpi
Plate Size
Max: 1,130mm x 920mm, Min: 510mm x 400mm
Exposing Size
Max: 1,130 x 904mm
Plate Type
UV Plate, High-Sensitive PS Plate
Plate Thickness
0.15mm ~ 0.3mm
Resolutions
2,400dpi
1,200dpi
Repeatability
± 5μm(Continuous exposure over four times on the same plate with a temperature of 23°C and 60% RH)
Interface
USB 2.0
Plate Loading
Alternative Autoload System
Net Weight
1,200 KG’s
Device Size
2,010 x 1,410 x 1,200mm (W x D x H)
Power
Single Phase: 200V-240V | Max power(Peak value): 4KW
