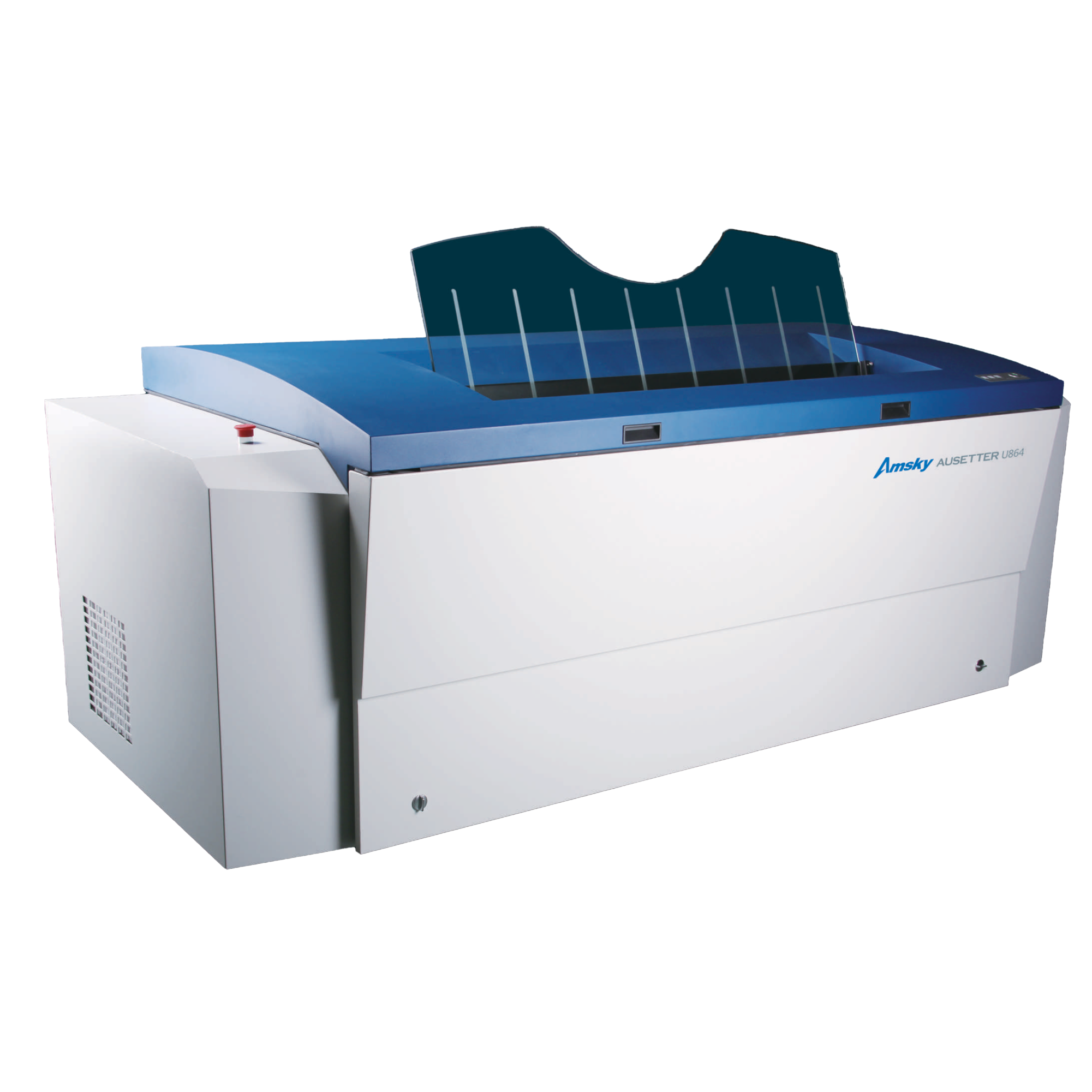

Ausetter 800
Model: U 864
Features
- Classical models preferred by medium-sized printers.
- Maximum size of plate 1,130mm x 920mm
- Features High stability and perfect output quality.
- UV plate and thermal plate are available for you to lower production cost.
- 32 channels, 48 channels and 64 channels laser are provided according to different printing speeds.
Description
High reliable stability and perfect output quality make it to be the most popular model for printers. Features High stability and perfect output quality it can meet most printers’ demands. UV plate and thermal plate are available for you to lower production cost. Furthermore, to improve the production efficiency, 32 channels, 48 channels and 64 channels laser are provided according to different printing speeds.
Specifications
| Models | U 832 | U 848 | U 864 | T 832 | T 848 | T 864 | |
|---|---|---|---|---|---|---|---|
| Exposing Method | External Drum | ||||||
| Imaging System | 32-channel | 48-channel | 64-channel | 32-channel | 48-channel | 64-channel | |
| Discrete 400nm – 410nm Laser | Discrete 830nm Laser | ||||||
| Output Speed | 16 plates/hour | 22 plates/hour | 28 plates/hour | 16 plates/hour | 22 plates/hour | 28 plates/hour | |
| 1,030mm x 800mm / 2,400dpi | |||||||
| Plate Size | Max: 1,130mm x 920mm, Min: 400mm x 300mm | ||||||
| Exposing Size | Max: 1,130mm x 904mm | ||||||
| Plate Type | UV Plate, High-Sensitive PS Plate | Thermal Plate | |||||
| Plate Thickness | 0.15mm ~ 0.3mm | ||||||
| Resolutions | 2,400dpi | ||||||
| Repeatability | ± 5μm(Continuous exposure over four times on the same plate with a temperature of 23°C and 60% RH) | ||||||
| Interface | USB 2.0 | ||||||
| Plate Loading | Manual place plate, then autoload | ||||||
| Net Weight | 900 KG’s | ||||||
| Device Size | 2,530 x 1,050 x 950mm (W x D x H) | ||||||
| Power | Single Phase: 200V-240V | Max power(Peak value): 4KW | ||||||
| Environment | Recommended temperature: 21-25°C Allowable temperature: 18-26°C Humidity: <70% | ||||||
