Autoloader SAT-800

  • Home
  • Products
  • Pre-Press
  • Autoloader SAT-800

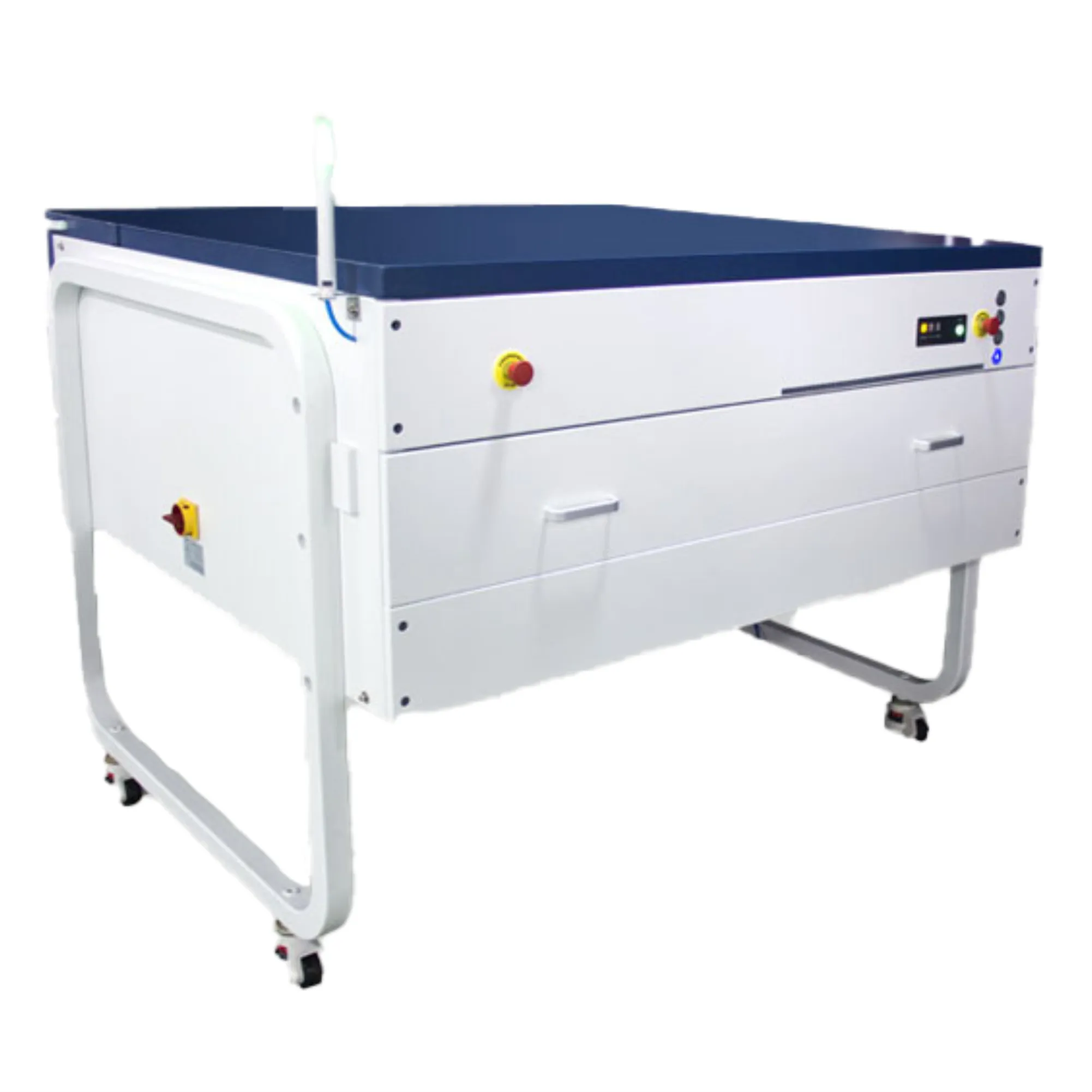

Amsky Autoloader MAT 800-HighRes_11zon
// Product //

Autoloader SAT-800

Model: SAT800

Features
  • The SAT800 Cassette Type is Loading platform.
  • Automatic Plate Feeding Way
  • Max 1,163mm x 940mm | Min. 300mm x 400mm
  • Interface is Rs485
  • Plate Loading Quantity is up to 100 plates

The Accelero News CTP range comes with two options for full automation. The SAT 800 has a single cassette which can hold up to 100 plates with slip sheets and for sites with higher volume and/or multiple plate sizes, the MAT 800 (shown) has four cassettes for a total capacity of 400 plates with slip sheets. SAT800 device support plates up to 1,163mm x 940mm and can deliver approximately 80 plates an hour to the CTP device.

Specifications

ModelSAT800
Cassette TypeLoading Platform
Plate Feeding WayAuto-feed (remove the interleaf paper at the same time)
Plate SizeMax. 1,163 × 940mm | Min. 300mm × 400mm
Plate Thickness0.15mm – 0.4mm
Plate Loading Quantity100 plates
Plate StackingManually stack plate on loading platform
InterfaceRs485
Net Weight190 KG’s
Device Size1,617mm × 1,300mm × 1,222mm. (W × L × H) The height of SAT800 plate exit above ground level is about 1,020mm.
Air Supply≥0.65 MPa
Power SupplySingle phase: 220V, Max power (Peak Value):900W
EnvironmentOperating temperature range: 15-30°C Recommended temperature:21-25°C Humidity: 40%-70%
