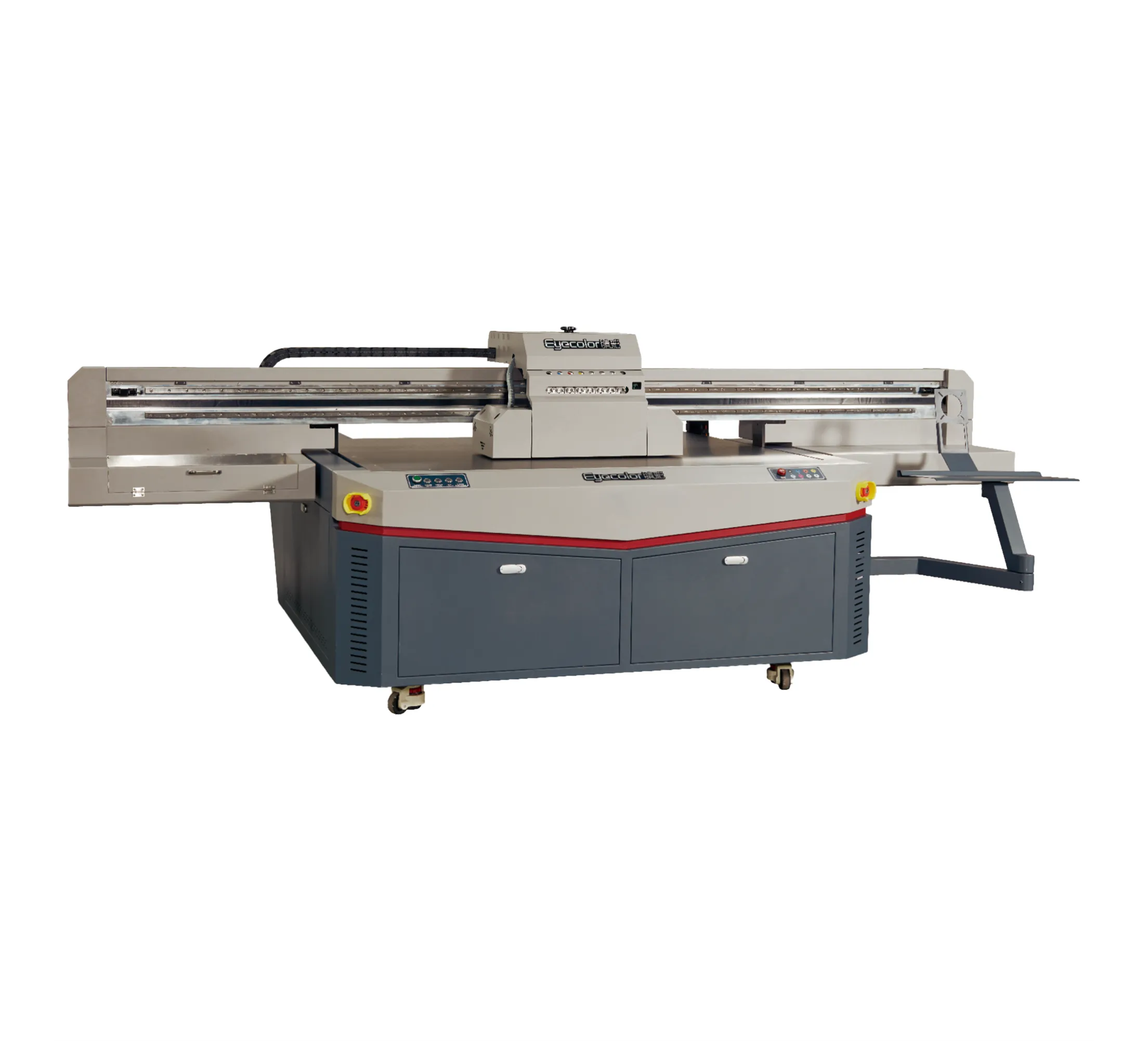

EyeColor JC-1612G

The Eyecolor JC-1612G is a versatile flatbed UV printer designed for personalized printing on rigid materials. Powered by 3 to 8 Ricoh GEN5 printheads, it supports CMYK, light colors, white, and varnish—delivering rich, layered output with resolutions up to 720×1200dpi. Its mid-size flatbed accommodates media up to 1600mm × 1200mm and 90mm thick, making it ideal for signage, décor, and custom industrial prints.

Automatic nozzle height detection ensures precise head positioning, while the water-cooled LED curing system provides efficient ink drying with minimal heat. Built-in anti-static and anti-collision features protect the printheads during operation, and the high-resolution negative pressure ink system maintains consistent flow for flawless results.

With a robust steel frame, FUJI servo motor, and compatibility with leading RIP software, the JC-1612G offers professional-grade performance in a compact footprint. Whether you’re printing on glass, wood, ceramics, or metal, this machine delivers precision, durability, and vibrant output for personalized production environments.

ADVANTAGES:

⚙️ Ricoh GEN5 Printheads (3–8 pcs)

Delivers high-resolution output with CMYK + LcLm + White + Varnish configuration.

📏 Mid-Size Flatbed Format:

Supports media up to 1600mm × 1200mm with adjustable print height from 2mm to 90mm.

⚡ Multi-Pass Speed Modes:

Up to 18m²/h in 4-pass mode; ideal for personalized and short-run production.

🧠 Automatic Nozzle Height Detection:

Ensures optimal head-to-media distance for consistent quality.

💡 Water-Cooled LED Curing System:

Efficient and eco-friendly ink curing with long lamp life.

🧲 Anti-Static & Anti-Collision Systems:

Protects printheads and ensures stable operation.

🧪 High-Resolution Negative Pressure Ink System:

Maintains consistent ink flow for sharp, vibrant prints.

🖥️ Smart RIP Compatibility:

Works with Photoprint and PrintFactory; supports TIFF, JPEG, EPS, PDF formats.

🛠️ Robust Build:

660kg steel-framed body with 1.5KW vacuum fan and FUJI 400W servo motor.

🎨 Multi-Material Support:

Prints on glass, wood, ceramics, aluminum panels, jade, and more.
