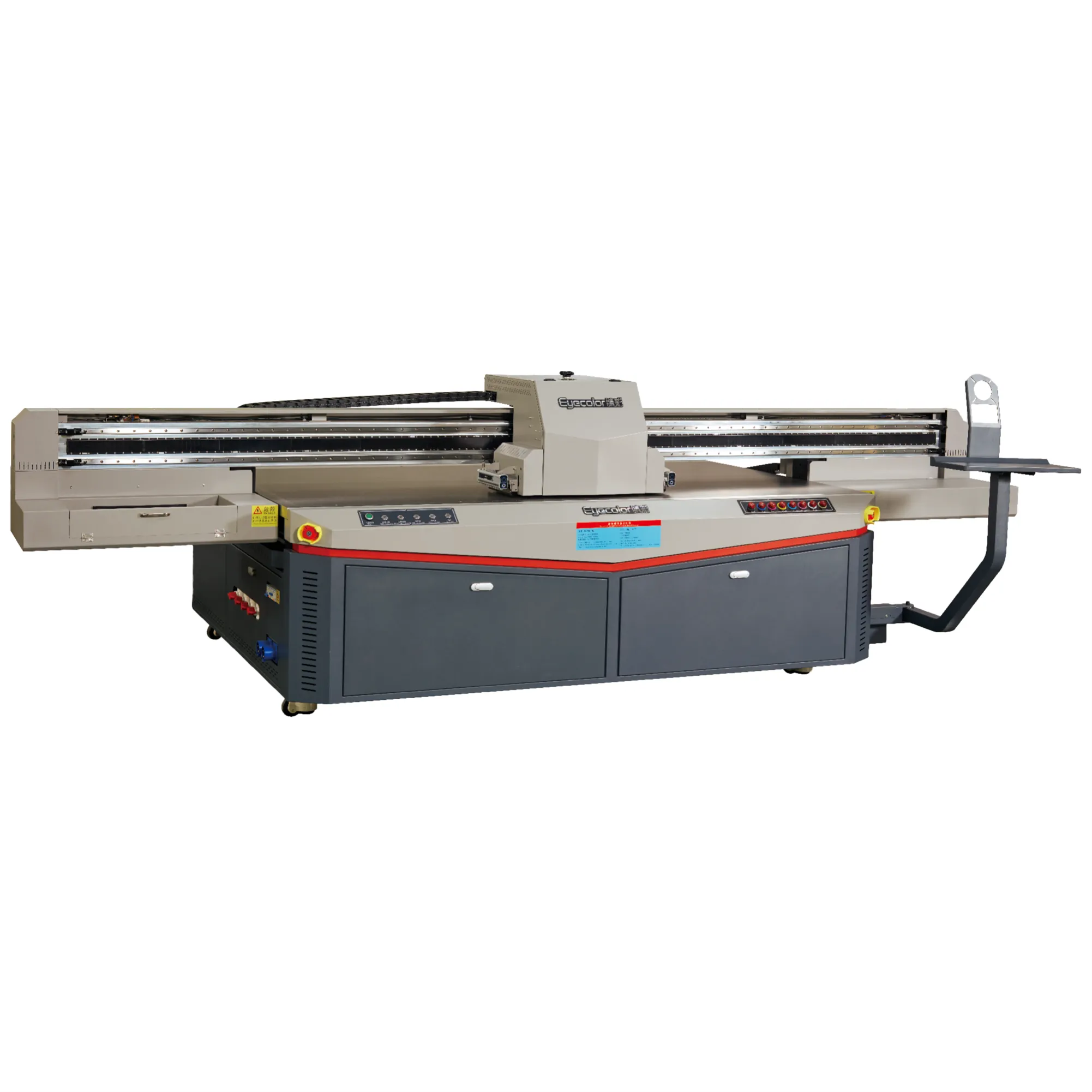

Eyecolor JC-2513G

The Eyecolor JC-2513G is a high-precision flatbed UV printer designed for industrial-grade printing on rigid materials. Equipped with 3 to 8 Ricoh GEN5 or GEN6 printheads, it delivers vibrant, multi-layered output with CMYK, light colors, white, and varnish. With a generous print area of 2500mm × 1300mm and adjustable head height up to 90mm, it accommodates a wide range of substrates including glass, wood, ceramics, and metal.

Its optional magnetic suspension linear motor ensures ultra-smooth carriage movement, while the water-cooled LED curing system provides efficient ink drying and long-term durability. The printer supports multiple pass modes, reaching speeds up to 24m²/h in 4-pass mode for GEN6 configurations.

Built with a robust steel frame, FUJI servo motor, and high-resolution negative pressure ink system, the JC-2513G offers precision, stability, and versatility. Whether you’re producing signage, decorative panels, or custom industrial prints, this machine delivers consistent quality with smart automation and reliable performance.

ADVANTAGES:

⚙️ Ricoh GEN5 / GEN6 Printheads:

Supports 3–8 heads with CMYK + LcLm + White + Varnish for rich, layered output.

📏 Large Flatbed Format:

Prints up to 2500mm × 1300mm with adjustable height from 2mm to 90mm.

⚡ Multi-Pass Speed Modes:

Up to 24m²/h in 4-pass mode with GEN6 heads; ideal for high-quality production.

🧠 Optional Magnetic Suspension Motor:

Ensures ultra-smooth carriage motion and high-speed precision.

💡 Water-Cooled LED Curing System:

Efficient ink curing with long lamp life and low heat emission.

🧲 Anti-Static & Anti-Collision Systems:

Protects printheads and ensures stable, uninterrupted operation.

🧪 Negative Pressure Ink System:

Maintains consistent ink flow for high-resolution output.

🖥️ Smart RIP Compatibility:

Works with Photoprint and PrintFactory; supports TIFF, JPEG, EPS, PDF formats.

🛠️ Heavy-Duty Build:

1360kg steel-framed body with FUJI servo motor and 1.5KW vacuum fan.

🎨 Multi-Material Support:

Prints on glass, wood, ceramics, metal, jade, aluminum panels, and more.
