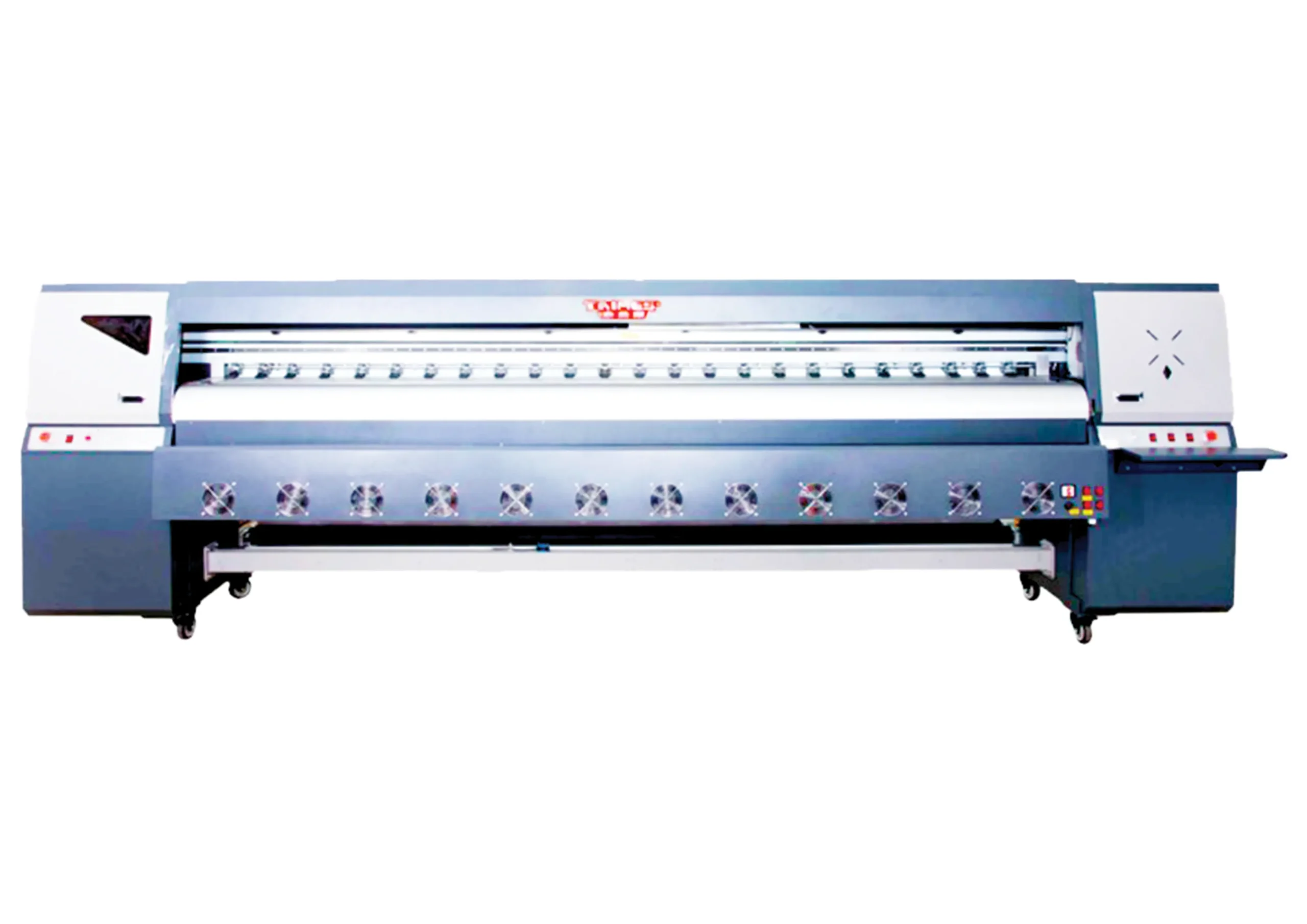

Taimes T5Q Solvent

The TAIMES T5Q Solvent Printer is a high-quality, industrial-grade wide-format printer built for speed, precision, and durability. Powered by KM512i-8H printheads, it delivers vibrant output at speeds up to 230 sqm/h, making it ideal for flex signage, vinyl graphics, and promotional media. With support for both 4-color and 6-color configurations, it offers expanded color depth and smoother gradients.

Its 3300mm print width accommodates a wide range of substrates, while the heavy-duty media feeding system handles rolls up to 120kg. The integrated positive pressure cleaning and anti-clog flash system ensure consistent nozzle performance, even during long production runs. Optional drying and multi-zone heating systems enhance ink curing for outdoor durability.

Designed for reliability and ease of use, the T5Q features large 5L ink tanks with auto/manual supply, USB 2.0 connectivity, and compatibility with leading RIP software. Whether you’re producing banners, backlit displays, or window films, the TAIMES T5Q offers professional-grade results with industrial efficiency.

ADVANTAGES:

⚙️ KM512i-8H Industrial Printheads:

Delivers high-resolution output with speeds up to 230 sqm/h.

🎨 Flexible Color Configuration:

Supports 4-color (CMYK) and 6-color (CMYK + LC/LM) setups for enhanced tonal range.

🧪 5L Ink Tanks with Auto Supply:

Large-capacity tanks per color with low-ink detection and manual/auto refill options.

📏 Wide Format Printing:

3300mm print width supports vinyl, flex, polyester, backlit film, and window film.

🧲 Heavy-Duty Media Handling:

Feeds media up to 120kg with clamp system and adjustable printhead height (2–4mm).

🧹 Positive Pressure Cleaning:

Anti-clog flash and capping system ensure consistent nozzle performance.

🌡️ Integrated Heating & Drying:

Optional drying system with multi-zone heating for optimal ink curing.

🔌 USB 2.0 Interface:

Reliable data transfer with support for PhotoPRINT 10.5 and Maintop V5.30 RIP software.

🏗️ Robust Build:

700kg steel-framed body with compact footprint and container-optimized packaging.

🌦️ Stable Operation Environment:

Designed for 20–28°C and 40–60% humidity for consistent performance.
