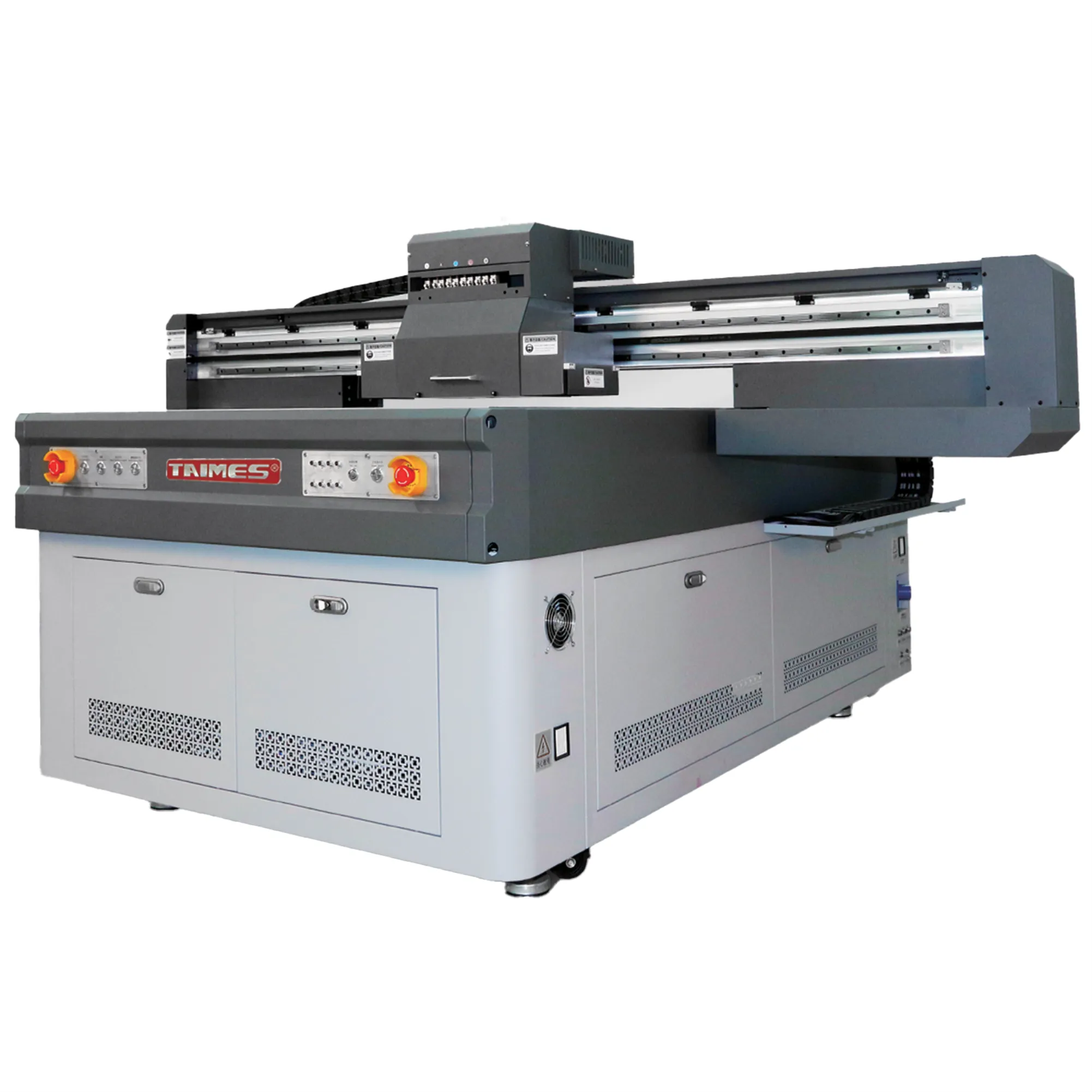

Taimes TF1016 UV Flatbed

The TAIMES TF1016 is a high-performance flatbed UV printer designed for precision printing on rigid materials. Equipped with RICOH G51 or GEN5 industrial printheads, it offers flexible speed and quality options—reaching up to 14 sqm/h in high-speed mode. Its advanced ink system supports white and varnish layers, enabling rich, textured finishes ideal for signage, décor, and packaging.

With a generous print area of 1600mm × 1000mm and adjustable head height up to 75mm, the TF1016 accommodates a wide range of substrates including wood, aluminum, glass, ceramics, and PVC. The LED water-cooled UV curing system ensures efficient ink drying and long-term durability.

Built for industrial reliability, the TF1016 features dual USB interfaces, robust RIP software support, and a steel-framed body weighing 550kg. Whether you’re producing premium panels, custom doors, or promotional displays, this machine delivers vibrant, high-resolution output with eco-conscious UV technology.

ADVANTAGES:

🖨️ Multiple Printhead Options:

Supports RICOH G51 (3.5PL) and GEN5 (7PL) heads for flexible speed and quality configurations.

⚡ High-Speed Output:

Up to 14 sqm/h with GEN5 heads in 4-pass mode—ideal for industrial-grade production.

🎨 Versatile Ink Setup:

Supports 4-color, 6-color, white, and varnish combinations for rich, layered finishes.

🧪 Eco-Friendly UV Ink:

Uses environmentally protective UV ink for durable, vibrant prints on rigid surfaces.

📏 Large Format Capability:

Prints on panels up to 1600mm × 1000mm and 45kg/m weight.

🧠 Adjustable Printhead Height:

Ranges from 2mm to 75mm for varied media thicknesses.

💡 LED Water-Cooled UV Lamps:

Efficient curing system ensures consistent results and long lamp life.

🧲 Multi-Material Support:

Compatible with wood, aluminum, glass, ceramics, acrylic, PVC, and more.

🔌 Dual USB Interface:

Includes USB 3.0 and Hi-Speed USB 2.0 for fast data transmission.

🖥️ RIP Software Compatibility:

Works with Photoprint, Maintop, and Printer Factory on Win7/10 (64-bit).
